Narrow root canals combined with severe apical curvature present one of the more demanding scenarios in everyday endodontic treatment. In this intermediate-difficulty case from Jordan, Dr. Mohd Hammo demonstrates a controlled, anatomy-respecting approach to treating a mandibular first molar with two such canals.
Case Overview
Tooth: Mandibular first molar (36/46)
Diagnosis: Pulpal pathology requiring root canal treatment
Primary Challenge: Two narrow canals exhibiting severe apical curvature. Regular files proved insufficient for safe preparation of this anatomy.
The overarching clinical principle guiding the entire procedure was clear: respect the original canal anatomy while preserving dentinal thickness.
Preoperative Analysis

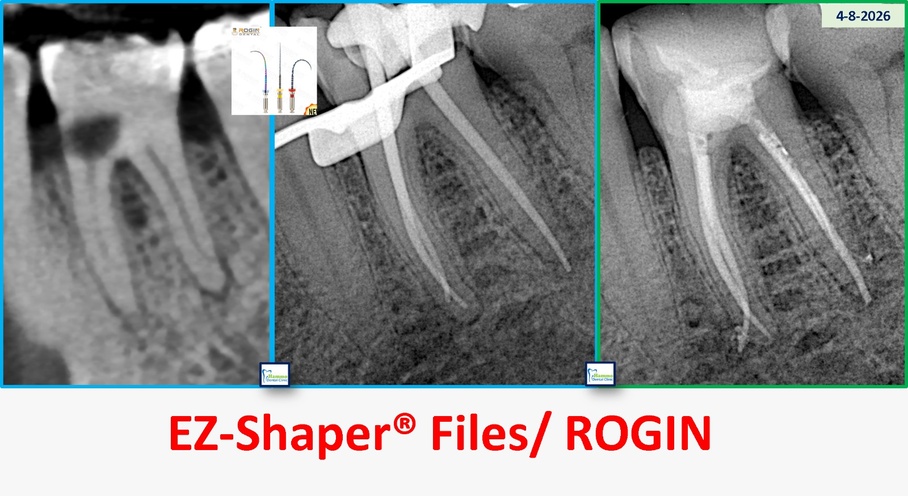

Preoperative radiographs revealed two narrow canals with pronounced apical curvature. This combination significantly increases the risk of transportation, ledge formation, or instrument separation when conventional files are used. Careful planning and progressive instrumentation were therefore essential.
Clinical Workflow
1. Access Preparation
A conservative access cavity was prepared to locate both canals. Coronal flaring was then performed with the EZx file (15/.07). Early coronal flaring reduces stress on subsequent instruments and improves straight-line access into the curved apical third.
2. Glide Path Establishment
A reproducible glide path was first created to full working length using a Rogin #10 K-file. This hand-file foundation is critical in narrow, curved canals. The pathway was then enlarged with the EZ1 file (15/.03), providing a safe transition into rotary instrumentation.
3. Canal Preparation
Both canals were carefully shaped using EZ-Shaper® files. The system allowed progressive enlargement while maintaining the original curvature and preserving dentinal thickness. Shaping followed the natural anatomy rather than dominating it.
4. Irrigation and Cleaning
Copious irrigation combined with activation was performed throughout the procedure to achieve effective canal disinfection, particularly important in narrow and curved anatomy where residual debris can easily remain.
5. Obturation
Both canals were densely obturated to full working length. The final fill confirmed that the original canal anatomy had been preserved throughout the entire treatment sequence.
Key Clinical Insight
The decisive factor in this case was not aggressive enlargement but disciplined adherence to the original pathway. Dentin preservation directly supports the long-term survival of the tooth. When instruments follow anatomy instead of forcing a predetermined shape, the risk of iatrogenic damage decreases and the quality of cleaning and obturation improves.
Clinical Tips from the Case
- Narrow canals with severe curvature demand heat-treated NiTi instruments; regular files cannot safely negotiate this anatomy.
- Establishing a reliable #10 K-file glide path remains the essential foundation before any rotary instrumentation.
- Early coronal flaring with the EZx (15/.07) protects subsequent files from excessive coronal stress.
- Shaping must follow the natural anatomy; it should never dominate or straighten the canal at the expense of dentin.
This case illustrates that even when faced with two narrow canals and severe apical curvature, a systematic sequence—conservative access, secure glide path, anatomy-preserving rotary preparation, thorough irrigation, and dense obturation—can deliver predictable results while safeguarding tooth structure.
